Scanner Class Reference

A class performs port scanning operations on a specified IP address for a given vector of ports. More...

#include <scanner.hpp>

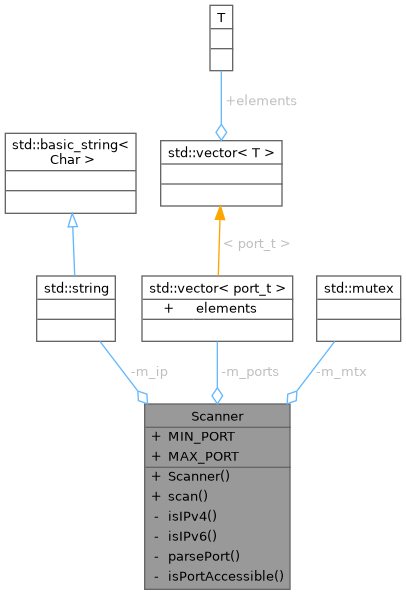

Collaboration diagram for Scanner:

Public Member Functions
	Scanner (ipaddr_t const &ip, std::vector< char const * > const &ports)
	Constructs a Scanner with a target IP address and a vector of ports to scan.
std::vector< std::pair< port_t, bool > >	scan () const
	Scans all specified ports on the target IP address.

Static Public Attributes
static port_t constexpr	MIN_PORT {}
	Minimum valid port number.
static port_t constexpr	MAX_PORT {65535}
	Maximum valid port number.

Private Member Functions
bool	isIPv4 (ipaddr_t const &ip) const noexcept
	Checks if the given IP address string is a syntactically valid IPv4 address.
bool	isIPv6 (ipaddr_t const &ip) const noexcept
	Checks if the given IP address string is a syntactically valid IPv6 address.
std::optional< port_t >	parsePort (char const *str) const noexcept
	Attempts to parse a C-string into a port_t. It also validates if the parsed number falls within the [MIN_PORT, MAX_PORT] range.
bool	isPortAccessible (port_t const port) const
	Attempts to establish a TCP connection to the specified port. This function incorporates a timeout (TIMEOUT_MS).

Private Attributes
ipaddr_t	m_ip
	Target IP address.
ports_t	m_ports {}
	Target ports.
std::mutex	m_mtx {}
	Mutable mutex for thread safety.

Detailed Description

A class performs port scanning operations on a specified IP address for a given vector of ports.

The Scanner class is designed to perform port scanning operations on a specified IP address for a given vector of ports. Every port is being scanned in separate thread for better performance.

Invariant

Valid IP address.

Valid ports.

Examples

scanner.cpp.

Definition at line 31 of file scanner.hpp.

Constructor & Destructor Documentation

Scanner()

Scanner::Scanner	(	ipaddr_t const &	ip,
		std::vector< char const * > const &	ports
	)

Constructs a Scanner with a target IP address and a vector of ports to scan.

Exception Safety: Strong guarantee. The object is constructed only if the IP address and all port strings are valid; otherwise, no object is created.

Parameters

ip	Target IP address to scan.
ports	A vector of null-terminated C-string port representations (e.g., "80", "443") to scan.

Exceptions

std::invalid_argument	If the IP address or any port string is invalid.
std::bad_alloc	If memory allocation for internal storage fails.
std::length_error	If the requested storage size exceeds the maximum allowed size.

Definition at line 15 of file scanner.cpp.

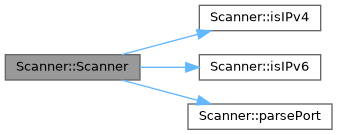

Here is the call graph for this function:

Member Function Documentation

isIPv4()

bool Scanner::isIPv4 ( ipaddr_t const &  ip ) const

privatenoexcept

Checks if the given IP address string is a syntactically valid IPv4 address.

Exception Safety: No-throw guarantee.

Parameters

ip	The IP address string to validate.

Returns

true if the IP is а valid IPv4, false otherwise.

Definition at line 51 of file scanner.cpp.

Here is the caller graph for this function:

isIPv6()

bool Scanner::isIPv6 ( ipaddr_t const &  ip ) const

privatenoexcept

Checks if the given IP address string is a syntactically valid IPv6 address.

Exception Safety: No-throw guarantee.

Parameters

ip	The IP address string to validate.

Returns

true if the IP is а valid IPv6, false otherwise.

Definition at line 56 of file scanner.cpp.

Here is the caller graph for this function:

isPortAccessible()

bool Scanner::isPortAccessible ( port_t const  port ) const

private

Attempts to establish a TCP connection to the specified port. This function incorporates a timeout (TIMEOUT_MS).

Exception Safety: Strong guarantee.

Parameters

port	The TCP port number to check for accessibility.

Returns

true if a connection can be established (port is accessible), false otherwise.

Exceptions

std::bad_alloc

If memory allocation for internal storage fails.

Definition at line 73 of file scanner.cpp.

Here is the caller graph for this function:

parsePort()

std::optional< port_t > Scanner::parsePort ( char const *  str ) const

privatenoexcept

Attempts to parse a C-string into a port_t. It also validates if the parsed number falls within the [MIN_PORT, MAX_PORT] range.

Exception Safety: No-throw guarantee.

Parameters

str	The C-string containing the potential port number.

Returns

An std::optional<port_t> containing the valid port number if parsing is successful and the number is in range; otherwise, an empty std::optional.

Definition at line 61 of file scanner.cpp.

Here is the caller graph for this function:

scan()

std::vector< std::pair< port_t, bool > > Scanner::scan

(

)

const

Scans all specified ports on the target IP address.

Each port is scanned concurrently in a separate thread.

Returns

A vector of pairs: <port number, is port accessible (true/false)>.

Examples

scanner.cpp.

Definition at line 31 of file scanner.cpp.

Here is the call graph for this function:

Member Data Documentation

m_ip

ipaddr_t Scanner::m_ip

private

Target IP address.

Definition at line 65 of file scanner.hpp.

m_mtx

std::mutex Scanner::m_mtx {}

mutableprivate

Mutable mutex for thread safety.

Exception safety: No-throw guarantee.

Definition at line 79 of file scanner.hpp.

m_ports

ports_t Scanner::m_ports {}

private

Target ports.

Exception safety: No-throw guarantee.

Definition at line 72 of file scanner.hpp.

MAX_PORT

port_t constexpr Scanner::MAX_PORT {65535}

staticconstexpr

Maximum valid port number.

Definition at line 62 of file scanner.hpp.

MIN_PORT

port_t constexpr Scanner::MIN_PORT {}

staticconstexpr

Minimum valid port number.

Definition at line 60 of file scanner.hpp.

---

The documentation for this class was generated from the following files:

• include/scanner.hpp
• src/scanner.cpp
